Four-Post Lifts by BendPak

HDS-14

SKU# 5175170

6,350-kg. Capacity / Four-Post Lift / Standard Length


BendPak's HDS-14 four-post lift is a whole new breed of rugged. It features superior components that work better, are built to last and increase operator safety. If your service bay needs to get under heavy-duty, oversized vehicles on a daily basis, this lift is what you need.

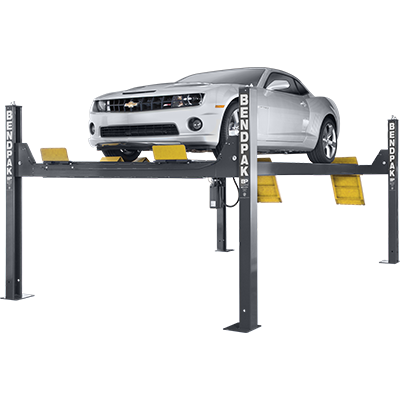

HDS-14 Four-Post Lift by BendPak
User Manual Download
Sales Sheet Download
Warranty Download

HDS-14 Four-Post Car ​Lift: No Such Thing as Overboard

BendPak's HDS-14 four-post lift is engineered to meet the strenuous demands of your toughest professional lifting applications. Incorporated into every lift is a laundry list of key features as long as your arm, ensuring BendPak lifts remain the absolute best.

Our competitors might say we overdo it, but we don't include components for the sake of frills and flash. We designed this four-post lift with the attributes we feel should be considered standard, not add-ons or extras. You can always count on BendPak lifts for increased durability, safety and productivity. Spend less time worrying about what you're working under and more time doing what you love. Our commercial-grade car lifts are second to none and recognized worldwide as the industry benchmarks in dependability and quality.

Extended runways

6,350-kg. vehicles have wheelbases that need specialized equipment to keep them safe and supported. Our extended runways prevent wear and tear on your vehicle. Driving onto the runway is safe and simple for vehicles of all sizes.

Dual-hub cable sheaves

Dual-hub cable sheaves reduce stress, fatigue and wear. Huge ​267 mm diameter cable sheaves within the runway and cross tubes combine with massive 57 mm diameter sheave axles. This dramatically improves cable wear and critical component lifespan, which means less money in service-related expenses down the road.

Heavy-duty aircraft cable

This lift features four, 13 mm diameter, 153 mm x 635 mm galvanized lifting cables that have a breaking strength of over 6,350-kg. each. This aircraft-quality cable was specifically designed for lifting applications and provides a great balance between abrasion resistance and fatigue.

Built-in lubrication

Grease fittings are located on every sheave and sheave axle to help keep these critical parts well-lubricated and simplify periodic maintenance.

Flow restrictor

An integrated hydraulic flow restrictor provides a controlled descent in the unlikely event of an unexpected hose rupture.

Large base plates

254 mm x 305 mm base plates provide a solid foundation for every 6,350-kg capacity four-post lift.

Spring-loaded safety locks

Safety locks automatically engage continuously during rise, and adjustable safety ladders allow for precise runway leveling, even when installed on sloped floors. This is a crucial feature because even small slopes can impact the safe-keeping of your garage or service bay.

Push-button pneumatic lock release

A simple push-button pneumatic lock release makes lowering operations simple and fast. Aircraft-quality stainless steel and aluminum pneumatic cylinders provide years of trouble-free service.

Secondary lock system

A secondary lock system is on constant guard and acts as a slack-cable device in the unlikely event your four-post lift experiences an unexpected cable failure.

Integrated design

Lifting cables, airlines, safety latches and sheaves are all fully enclosed within the structure. That doesn’t mean they’re hard to find: you’re always able to look in and perform a visual inspection during operation.

Adjustable height locking positions

Each column features multiple height locking positions for variable-height parking and infinite leveling.

Electric-hydraulic power system

A maintenance-free electric hydraulic power system assures ultimate dependability. All operator controls are conveniently located within easy reach. Raising and lowering the arms should be as easy as pushing a button—and it is!

Longer approach ramps

These approach ramps were designed a little longer to help when loading low ground-clearance vehicles. It's the little bit that makes a big difference.

Flexible protective conduit

Hydraulic hoses and airlines, if not properly managed, can be a legal and functional nightmare. ALI inspectors routinely write citations and refuse to pass inspected lifts because of visible damage to cables. We route all our cables through flexible, non-metallic tubing that protects against electrical shocks from worn cables, as well as general wear that occurs from heavy use over time.

Rolling bridge jacks

Optional 3,175-kg. capacity rolling jacks (model RBJ7000) make a great addition. RBJ7000 bridge jacks are used to raise the front or rear portion of a vehicle off the runways, allowing operators to perform efficient wheel and brake service. A pair of jacks allows the entire vehicle to elevated. Each jack has telescoping arms with frame contact pads that can be extended over the runways and positioned under vehicle lifting points. Telescoping rail supports accommodate adjustable runways for different tread widths. Each jack features three safety-lock positions, as well as stackable truck and van adapters for increased lifting height and better access to frame contact points on high ground-clearance vehicles. The jacks come equipped with a commercial grade air-hydraulic pump requiring a maximum pressure of 125 PSI and 10 – 20 CFM.

Choose extended length

A longer lift is useful for vehicles like limos, SUVs and trucks, and that’s where the HDS-14X extended 4-post lift comes in handy. We call it our “limo style” lift because of how much front-to-back clearance it offers, so you can make it over or under the lift with ease. This lift adds additional versatility and craftsmanship to your garage.

Choose open-front design

We engineered the HDSO14P open-front ​4-post lift without a front cross bar, so operators can easily enter and exit from beneath the vehicle. Now the process of front-end adjustment becomes quick and trouble-free. This specialty car lift is a must for busy service bays.

Features

  • 6,350-kg. lifting capacity
  • CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN-1493
  • Mid to long-style approach ramps for low ground clearance vehicles
  • Runways include rail-kit for optional accessories
  • Single hydraulic cylinder mounted underneath runway
  • Fully enclosed lifting cables, safety locks and sheaves
  • Internal anti-sway slider blocks in each column
  • Pneumatic push-button safety release
  • Features heavy-duty 13 mm aircraft cable
  • Safety locks enclosed in columns minimize pinch points
  • Oversized sheave diameter reduces cable fatigue
  • Oversized self-lubricating cable rollers
  • Rugged 45 mm roller axles
  • Multi-position safety locks in each column
  • Customizable power unit location
  • Approach ramps incorporate built-in rear-wheel chocks
  • Independent backup slack-cable safety latches
  • Optional drive-thru ramps available
  • Optional drip trays available
  • Optional 3,175-kg. capacity rolling jacks available (Model RJ-7)
  • ETL approved

HDS-14 Specifications

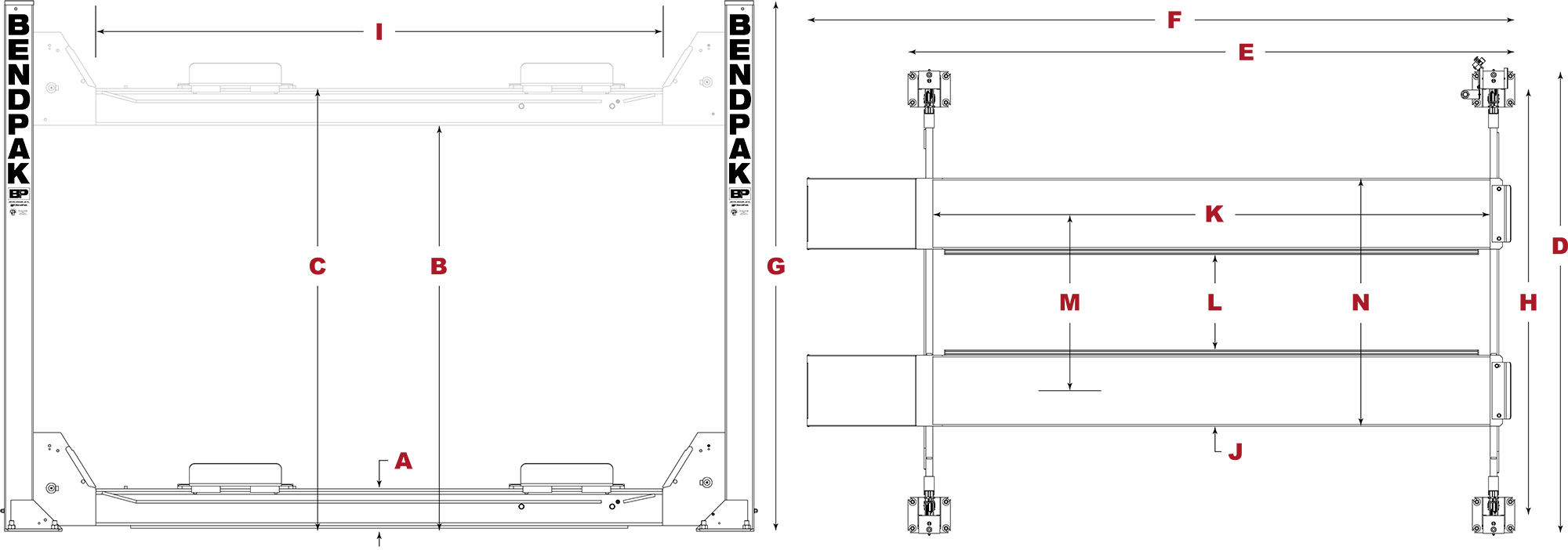

HDS-14 specs diagram

Capacity

Lifting Capacity*
14000
*Max Capacity / Front Axle
7000
*Max Capacity / Rear Axle
7000

Rise

A - Min. Runway Height:
7.625
B - Max. Rise:
70
C - Max. Lifting Height:
77.625
Time to Full Rise:
60 seconds

Outside Dimensions

D - Overall Width:
130
E - Outside Length:
213
F - Overall Length:
241
G - Height of Columns:
93

Inside Dimensions

H - Width Between Columns:
120
I - Drive-Thru Clearance:
98

Runways

J - Runway Width:
20
K - Length of Runways:
199
L - Width Between Runways:
37.5 or 51
M - Runway Centerline:
57.5 or 71
N - Outside Edge of Runways:
77.5 or 91

Minimum Wheelbase

Rated Capacity:
140
75% Capacity:
120
50% Capacity:
100
25% Capacity:
80

Locking

Locking Positions:
13
Lock Spacing:
Every 4" (102 mm)

Power Unit

Motor:
220 VAC / 60 Hz / 1 Ph
Noise:
45 dB

Shipping

Weight:
2,605
Dimensions:
212" x 24" x 40" (5,385mm x 610 mm x 1,016 mm)

Note: An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.
