Tire Repair by Ranger


SKU# 5140120

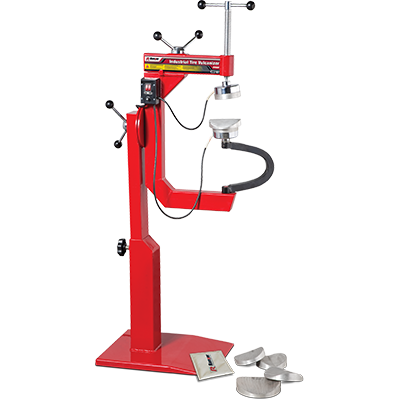

Heavy-Duty Tire Vulcanizer

The Ranger RV-80L Tire Vulcanizer quickly and easily repairs tires for the fraction of the cost of purchasing a new tire.

RV-80L Tire Vulcanizer for Tire Repair by Ranger Products
User Manual Download
Sales Sheet Download
Warranty Download

T​ire Repair Made Easy

With the RV-80L T​ire Vulcanizer, you can repair the tread, shoulder and sidewall areas of passenger t​ires, light truck t​ires, bus t​ires, coach t​ires and commercial truck t​ires with no hassle. The unit accommodates one-man operation. With a fully rotating C-frame, RV-80L adapts to different wheel sizes. With an adjustable height tower and five contoured heat pads, it offers unparalleled ease of operation.

Don’t replace—repair! The vulcanizing repair process cures the patch and inner t​ire lining to form a dense, sealed repair job. Long-life Acme thread hand-wheel screw applies over 2,268 kg of pressure and heat for maximum adhesion of patch to casing.

This vulcanizer requires no time-consuming tensioning straps. Simple clamps keep the t​ire in place while you work. Includes assembly stand, five contoured curing heads and a high-temperature aluminium-filled, silica-cloth heating pad. Curing heads can be operated individually or simultaneously for maximum repair efficiency. Large-capacity, fully rotating C-frame accommodates different wheel sizes and allows for vertical or horizontal repairs. An adjustable, swing-open, rotating C-frame cavity simplifies t​ire loading and unloading while maximizing stability.


  • Simple, one-​person operation
  • Repairs tread, shoulder and sidewall
  • Adjustable height tower
  • Contoured inner and outer curing heads conform to a variety of t​ire profiles
  • Energy and cost-efficient for lower operating costs
  • Lightweight, self-standing design offers portability and maximum stability
  • Handles long sidewall repairs
  • Cures both patch and plug simultaneously
  • Constant-controlled heating elements maintain optimum temperature


RV-80L specs diagram
1,448 mm x 559 mm x 356 mm (57” x 22” x 14”)
1 Curing Head
165 mm (6.5”)
1 Curing Head
140 mm (5.5”)
3 Curing Heads
121 mm (4.75”)
Silica Heating Pads
191 mm x 140 mm (7.5” x 5.5”)
Power Requirement
110 V / 60 Hz / 1 Ph
Shipping Weight
35 kg (78 lbs. )
