Oil Filter Crushers by Ranger

RP-30FCH

SKU# 5150008

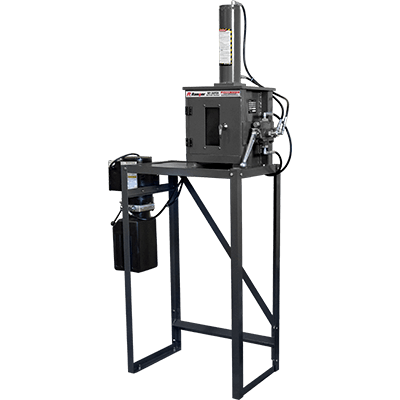

Electric/Hydraulic Oil Filter Crusher with Stand / 15-Ton (13.6-mt.) Capacity / 208-240V / 1 Ph / 50/60 Hz


The RP-30FCH oil filter crusher applies 13,608 kg. of crushing force against used oil filters that need to be completely drained of residual oil. Its manual stainless steel handle is ergonomically placed on the side of the crusher to safely manage its two-way stop-and-start operation.

Oil Filter Crusher with 15-Ton (13.6-mt.) Pressing Capacity RP-30FCH by Ranger Products
User Manual Download
Sales Sheet Download
Warranty Download

Crush Your Filters and Save Thousands

Did you know an oil filter crusher can help reduce shop costs and earn you profit? To maximise its money-making potential, we kept the RP-30FCH oil filter crusher simple, efficient and extremely powerful. As anyone who runs a quick-lube or full-service auto shop knows, the residual oil that gets stuck in oil filters is like liquid gold. Smart shops don’t let this stuff go, or else they have a plan to use it wisely for a profit. Used oil can be repurposed, recycled or re-refined, eliminating disposal fees and increasing your bottom line. Even the oil filter casings can be recycled as scrap metal. Not to mention, it’s illegal to dispose of oily, uncrushed filters without incurring heavy fines from both state and federal governments.

With 15-Ton (13.6-mt.) of crushing power at your disposal, most oil filters can be easily smashed down to hockey pucks in a matter of seconds. As long as the uncrushed filter fits in the crushing chamber, there’s an extremely high likelihood this oil filter crusher will be draining out that oil in no time, converting your hazardous-waste oil filters into legally recyclable metal. The RP-30FCH crushes oil filters down to 20% of their original size and removes 95% of any remaining oil from the filter. A large, rugged stand permits the use of oil storage drums up to 208-L.

No bells and whistles here—just the essentials. Manually operated machinery is often preferred for its simplicity and overall dependability. The two-way handle permits lowering and raising of the crushing block; releasing the handle immediately stops all operations. To further ensure user safety, a built in, spring-loaded shutoff switch is depressed when the chamber door is closed. If the door opens for any reason, the switch cuts electrical connectivity to the crusher and operations instantly cease. Plus, the RP-30FCH oil filter crusher features a see-through fibreglass window, so operators get to safely watch all crushing operations in real-time.

Features

  • Maximum crushing pressure of 13,606-kg.
  • Filters are reduced to 20% of their original size with 95% of residual oil removed
  • Fulfils EPA and other mandated environmental standards
  • Save on waste disposal costs and storage space
  • Cycle time approximately 8 to 15 seconds depending on filter size
  • No-mess design operates clean and efficiently to lessen spill hazards
  • Ergonomic controls feature manual cycles
  • Welded steel plate construction
  • Electric-hydraulic power unit features 2-HP motor
  • Spring-loaded shutoff switch stops operation when door is opened
  • Transparent door for a convenient view of the crushing process
  • Powered by a 2-HP electric-hydraulic pump with ​7.6-L reservoir
  • Rugged floor stand is designed to accommodate up to ​208-L drums for efficient fluid handling

Specifications

RP-30FCH specs diagram
Overall Height
75” (1,905 mm)
Overall Width
42.5” (1,080 mm)
Overall Depth
17” (432 mm)
Chamber Opening Height
10.75” (273 mm)
Chamber Opening Width
8.5” (216 mm)
Chamber Opening Depth
10.5” (267 mm)
Average Cycle Time
8 – 15 sec
Power Supply
208-240V / 50/60 Hz / 1 Ph
