Oil Drains by Ranger


SKU# 5150997

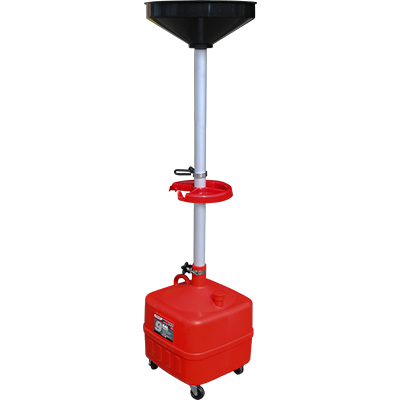

34 L (9-gal) Upright Portable Oil Drain

This upright 34 L (9-gal) capacity oil drain features a wide-body structure comprised of heavy-duty, translucent polyethylene, providing years of worry-free use.

Portable Oil Drain RD-9G by Ranger Products
User Manual Download
Sales Sheet Download
Warranty Download

Wide-Body, Lightweight Oil Drain

Ranger oil drains are by far the best solution to the common problem of waste fluids. The lightweight 34-L (9-gallon) RD-9G features a wide-bodied design to eliminate tipping and ensure proper balance, whether the unit is in use or manoeuvring around the garage on its ball bearing casters. Constructed of high-quality translucent polyethylene for strength, durability and easy oil-level viewing. All Ranger oil drains resist rust, dents, automotive fluids and other corrosive chemicals.


  • Lightweight for easy portability
  • Safe and easy to use
  • Wide body
  • Tough construction will resist dents, rust and corrosion
  • Heavy-duty stainless steel clamp
  • Non-corrosive telescoping tube
  • Easy-pour oil spout for simple evacuation
  • Built-in hand grips
  • 4 swivel, ball bearing casters
  • Translucent polyethylene tank for easy viewing of fluid level
  • Rugged funnel with built-in contamination screen


RD-9G specs diagram
Funnel Diameter
18" (457 mm)
Fluid Capacity
9 gallons (34 L)
Adjustable Height
32" - 64" (813 mm - 1,626 mm)
Shipping Weight
14 lbs. (6 kg)
Shipping Dimensions
19" x 18" x 23" (483 mm x 457 mm x 584 mm)
