Motorcycle Lifts by Ranger


SKU# 5150575

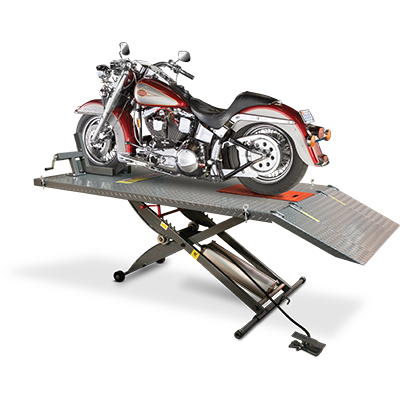

Motorcycle Lift Table Complete Wide Side and Front Extended

With a 454-kg. lifting capacity, the RML-600XL lift platform brings professional ease to any motorcycle or ATV service job.

Motorcycle Lift Platform RML-600XL by Ranger Products
User Manual Download
Sales Sheet Download
Warranty Download

A Better Motorcycle Lift

If you build, re-build, repair, service, maintain or store motorcycles and you still don’t have a Ranger motorcycle lift, you're robbing yourself of a truly awesome do-it-yourself experience. Ranger motorcycle / ATV lifts are known as some of the finest in the industry for quality, features, safety and longevity.

Take the Ranger RML-600XL Motorcycle / ATV lift. This 454-kg. capacity powerhouse brings convenience and ease to any motorcycle or ATV job. Constructed from rugged 12-gauge steel with extra-wide drive-up ramps and dual-screw front wheel vise, the RML-600XL Motorcycle lift is the reliable heavy-lifter that brings the joy back to motorcycle / ATV maintenance. Every Ranger RML-600XL Motorcycle lift comes fully equipped with a generous 2134 mm by 607 mm work table that will easily hold most bikes. On the off chance that you need more room, the 305 mm side extensions and the 330 mm front table extensions give you a massive 2,464 mm by 1,218 mm area to work and play in.

Bottom line: the design of this motorcycle and ATV lift platform is legendary. A retracting wheel deck provides the incredible free-hanging wheel accessibility of a two-post car lift while seven fail-safe locks keep the table securely in place under load. Top that off with an incredibly durable powder-coat finish and one of the most dependable pneumatic designs in existence, and you're virtually guaranteed years and years of trouble free-performance from your new RML-600XL Motorcycle lift from Ranger.

Need an extra boost? Check out the RML-1100 Motorcycle / ATV Jack.


  • Motorcycle ​lift constructed out of 12-gauge steel
  • 254 mm bolt-on side extensions - standard
  • ​483 mm front table extension - standard
  • 10 sec lifting time
  • Pneumatic lifting cylinder
  • Durable powder-coat finish
  • Adjustable front wheel vise
  • Drop-away rear wheel deck
  • ​254 mm bolt-on side extensions
  • Easy ramp(s) removal
  • Hold-down rings


RML-600XL specs diagram
Lifting Capacity
1,000 lbs. (455 kg)
Lowered Height
7" (178 mm)
Raised Height
31.5" (800 mm)
Table Length
79" (2,007 mm)
Table Length w/ Extension
98" (2,489 mm)
Table Eidth
24" (610 mm)
Table Width w/ Wide Extensions
44" (1,118 mm)
Lifting Time
10 sec
Shipping Weight
538 lbs. (244 kg)
Shipping Dimensions
30" x 85" x 11" (762 mm x 2,159 mm x 279 mm)
