Jack Stands by Ranger

RJS-2TH

SKU# 5150125

2 ton (1.8-mt.) Tripod Stand


This extremely mobile yet beefy tripod jack stand stabilises up to 2 tons (1.8-mt.) worth of vehicle, making it ideal for servicing heavy-duty vehicle transmissions, exhausts and engines that are raised on a two-post hoist or four-post hoist.

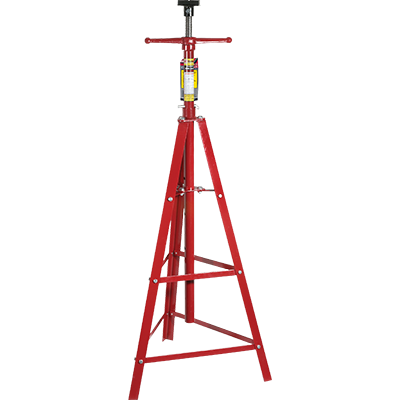

RJS-2TH Tripod Jack Stand by Ranger Products
User Manual Download
Sales Sheet Download
Warranty Download

A ​Tall, Heavy-Duty Stand to Stabilise Raised Vehicles

The RJS-2TH 2 ton (1.8-mt) High Tripod Jack Stand is the ideal selection for stabilising a lifted vehicle. The extended ACME screw adjusts to heights between 1,397 mm and 2,210 mm, while heavy-duty rubber stabilisation pads keep everything stationary and scratch-free.

Without the proper tools, transmission and engine service can be difficult. In fact, removing heavy equipment from vehicles can shift the centre of gravity significantly, making it nearly impossible to rely on hoist points alone to provide a stable hoist for your vehicle. Luckily, Ranger’s RJS-2TH high tripod stand services virtually every vehicle that can be lifted on a car hoist.

Capable of hoisting up to 1,814 kg, that extra support is crucial to keeping the right centre of balance of your lifted vehicle. The tripod design is an architectural classic for a reason: it’s efficient, powerful and almost impossible to knock over.

With a pair of these stands placed under a lifted vehicle, you can actually lower the vehicle with the jack stands in place between a four-post car hoist’s runways, and the stands will support the vehicle’s weight. Wheel service, engine swaps, transmission service, etc. are all a cinch. It’s amazing how one little tool, a high-reach tripod jack stand, can turn “I can’t” to “bring it on.”

Most non-speciality shops won’t touch these sorts of jobs, so a small device like this can make a huge difference in your bottom line. If you do run a speciality/transmission shop, make sure you’re servicing your vehicles with the best quality jack stands money can buy.

Features

  • Perfect for holding drive-train or exhaust components in position
  • Stabilizes vehicles that are raised on lifts
  • Heavy-steel construction for maximum durability
  • Quick adjust spin handle with thrust bearing
  • Hardened ACME screw for easy adjustment
  • Wide base provides maximum stability
  • Thick, rubber adjustable pad for maximum support

Specifications

RJS-2TH specs diagram
Holding Capacity
4,000 lbs. (1,814 kg)
Lowered Height
55" (1,397 mm)
Maximum Height
87" (2,210 mm)
Base Dimensions
24" x 24" (609 mm x 609 mm)
Shipping Weight
45 lbs. (20 kg)
Shipping Dimensions
47" x 9" x 3" (1,194 mm x 229 mm x 76 mm)
