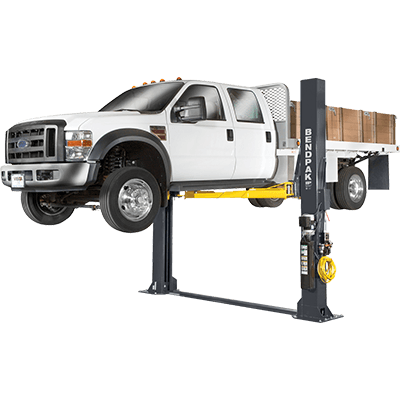

5,443-kg. Capacity / Two-Post Lift / Floorplate / Direct-Drive / Triple-Telescoping Arms
If you appreciate the superior quality of a BendPak XPR-9 or 10 series two-post lift but need more lifting power, the XPR-12FDL is an open-top car lift that’s packed with pure, brutish muscle. Like its Clearfloor sister-lift, it offers superior Direct-Drive performance.
XPR-12FDL Offers Heavy-Duty Lifting Capability
The XPR-12FDL is the perfect lifting application for everything that falls in its weight class. Two robust posts are capable of raising some truly massive trucks and SUVs. This might be classified as our “medium-duty” lift, as it covers almost every vehicle in the homeowner/residential arena. It also lifts some commercial vans and trucks, including high-rise vehicles like Sprinters.
However, even though this car lift is made to handle massive vehicles, it belongs in every auto shop or serious DIY garage that lifts trucks, farm equipment, work vans, etc. It might be the most versatile lift you ever own, given that its low-profile arms will easily reach the lift points of low-stance race cars and sports cars (including both foreign and domestic models). The columns are set wide to fit trucks and SUVs, but the dual triple-telescoping arms reach farther than the arms on our lighter-duty lifts. With the XPR-12FDL, you’re not sacrificing the ability to service smaller vehicles as you gain the ability to service large ones.
The XPR-12FDL is an open-top design. An open-top lift does not have a crossbar over the top of the lift, which is desirable for taller vehicles. The hydraulic lines run on the floor, under a floorplate, between the posts.
Dual Direct-Drive two-post car lift technology
We prefer Direct-Drive technology for our two-post lift, as opposed to lifting chains and screw mechanisms. Direct-Drive hydraulic technology has very few moving parts, so there’s less that can go wrong or require service over time. We carefully engineering the dual-synchro equalization system to ensure safe, level working conditions at all times.
Triple-telescoping arm set
Our lighter-duty two-post lift models feature a mixture of two-stage and three-stage telescoping arms. Because a lift needs to make room for wide trucks, vans and SUVs, we set the columns farther apart. We can still reach virtually all lift points on smaller vehicles by only including three-stage arms.
Low-profile, dropped-end frame contact pads
The XPR-12FDL makes safely reaching under low-profile cars safe and easy. The dropped-end design ensures vehicle doors and chassis don’t get scratched or dinged during placement of the arms and pads against the lift points.
16-Piece adapter set / standard
We won’t risk compromising your safety just to get a few extra bucks with a separately sold accessory that’s actually necessary. So, we include a versatile and essential two-post lift accessory kit for your convenience. In this kit, you get four 152 mm stackable adapters, four 76 mm stackable adapters, four polyurethane contact pads and four frame cradle pads. You no longer have to worry about lifting trucks with running boards or those auxiliary fuel tanks, which made car lift operation a pain.
Lowered arm tube supports
By lowering the arms tubes, we ensure vehicle doors can open and close without catching the supports.
Automatic arm restraints
The arm restraints on a two-post lift are one of the most essential safety features. These restraints are essentially what keep the arms locked during lift. They lock automatically while the arms ascend the lift carriage, and they disengage when the lift is fully lowered.
Taller lift carriages
Sometimes the magic of BendPak construction exists in the details. Taller lift carriages reduce stress on the columns, so we make ours 1,346 mm high. That’s taller—and safer—than our competition.
Maintenance-free load bearings
UHMW load bearings, unlike older-style roller bearings, don’t need lubrication and quite literally never degrade over time. They last forever and aren’t negatively affected by chemicals or oils.
How long do you want your columns to last? Decades? Good, that’s how we feel too. And that’s why we make our columns out of a single piece of steel. It makes for a stronger, longer-lasting structure overall.
Single-point safety release
The safety release on every XPR-12 car lift is single-point and easy to use. We keep our operations simple, so you stay safe at all times.
Our high-grade overhead shutoff bar stops all action on the lift at the moment a vehicle comes into contact with it.
For faster operation that doesn’t compromise safety—and in fact increases it—we include, free-flow, high-pressure 10 mm hydraulic lines, a high-flow pump and integrated AC power unit.
- 5,443-kg. lifting capacity
- CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN 1493
- Open-top eliminates overhead obstruction
- Single-piece columns
- Single-point safety release
- Drop-end arms provide a lower pad height
- Dual direct-drive hydraulic cylinders
- Oversized 1,346 mm tall carriage for superior strength and durability
- Large, 635 mm x 559 mm A36 steel base plate
- Electric / hydraulic power system
- Oversized A36 steel base plates
- Self-lubricating dura-glide UHMW polyethylene bearing system
- Safety locks in each column spaced every 76 mm
- Plated arm restraints and arm pins for rust prevention
- Heavy-duty 13 mm aircraft-quality equalizer cables
- Oversized 152 mm cable sheave diameter reduces cable fatigue
- 16-piece specialty adapter set includes four 152 mm stackable adapters, four 76 mm stackable adapters, four polyurethane contact pads and four frame cradle pads
- Front and rear triple-telescoping arms provide increased range for lifting point access
- Versatile drop-in contact pads with stackable adapters
Arms & Pads
Note: Not all BendPak lift models meet the standards as prescribed by ANSI/ALI ALCTV-2017 or ANSI/UL 201. Consult www.autolift.org for a complete list or contact BendPak via email@example.com.
