Rolling Bridge Jacks by BendPak

RJ45W

SKU# 5175247

2,041-kg. Capacity / Jacking Beam / Easy-Roll Wheels


BendPak RJ45W rolling bridge jack is designed to hold up to 2,041-kgs. and features easy-to-roll wheels that make sliding simple between the four-post lift runways. Use this 4-post bridge jack with your BendPak HD-9 series four-post car lift for increased versatility and productivity.

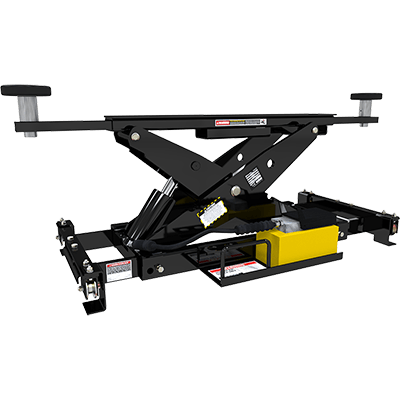

RJ45W Rolling Bridge Jack
User Manual Download
Sales Sheet Download
Warranty Download

Lift 2,041-kgs. for Full Wheel Service Capability

The RJ45W rolling bridge jack is the DIY’ers dream product, and it’s ideal for any shop with the HD-9, arguably our most popular and versatile car lift. The HD-9 is the lift that many garages prefer because its optional caster kit allows operators to move it anywhere in their shop. Its compact size and reputation for safety mean this is one of the most popular car lifts ever made. Anyone interested in a four-post lift for wheel service should consider the HD-9 complete with a pair of RJ45W rolling bridge jacks.

What is the difference between the RJ45LP and RJ45W?

The RJ45LP and RJ45W rolling bridge jacks are essentially the same except for two specifications: First, the RJ45LP minimum drive-over height is 108 mm and the RJ45W minimum drive-over height is 114 mm. Second, the RJ45LP maximum arm reach is 1,534 mm wide and the RJ45W maximum arm reach is 1,447 mm wide. Take a look at the RJ45LP Bridge Jack.

Easy-Roll Wheels Come Standard

The RJ45W rolling bridge comes standard with easy-roll wheels that fit onto the runway channels on standard four-post lift models ​3,175-kgs lifting capacity or greater and provide effortless gliding along the runways for easy positioning and adjustability. BendPak rolling bridge jack rollers are made of hardened stainless-steel and zinc plated for maximum durability.

Rubber contact pads

BendPak protects your vehicles by providing a non-marring rubber contact pad on the popular RJ45W rolling bridge jack. The durable design will hold up for many years of heavy use. We highly recommended purchasing the optional frame cradle set for use on trucks and SUVs.

Stackable adapters

Once your rubber contact pads are positioned under the manufacturer-recommended lift points, you may find that high-clearance vehicles are hard to reach. The stackable adapter set comes in handy to bridge that gap and make lifting easier.

High-pressure hydraulic power unit

Attached to the rolling bridge jack is a hydraulic power unit that also features an airline with 125 psi and 10 – 20 CFM. This independent power unit is ergonomically controlled with a foot pedal attached directly to the jack.

Three lock levels

With three lock positions to choose from, it’s easy to find the perfect height to perform wheel and brake service. For additional height, raise the car lift to its max height, add the stackable adapters and raise the rolling bridge jack as high as it will go. Now you have more access to the undercarriage than ever before.

Features

  • 2,041-kg. lifting capacity
  • Easy-Roll Wheels
  • Rubber contact pads
  • Stackable adapters
  • High-pressure hydraulic power unit
  • Optional air-line kit
RJ45W specs diagram

Capacity

Lifting Capacity*

Rise

A - Max. Height + Pad Only:
B - Max. Height + Pad + Adapter:
C - Min. Height + Pad Only:
D - Min. Height + Pad + Adapter:
Time to Full Rise:

Reach

F - Support Arm Width:
-
G - Max. Arm Reach:
H - Min. Arm Reach:

Power Unit

Motor:
Noise:

Shipping

Weight:
Dimensions:

RJ45W Specifications

Lifting Capacity
4,500 lbs. (2,041 kg)
Suitable Lift Model(s)
HD-7 Series, HD-9 Series, GP-9 Series

Min. Drive-Over Height*

Pad Only:
4.5" (114 mm)
Pad + 2.75" Adapter:
7.25" (184 mm)
Pad + 5.5" Adapter:
10" (254 mm)

Max. Lifting Height*

Pad Only:
15.5" (394 mm)
Pad + 2.75" Adapter:
18.25" (464 mm)
Pad + 5.5" Adapter:
21" (533 mm)

Reach

Support Base Width:
35.5" (902 mm) - 46.5" (1,181 mm)
Max. Arm Reach:
57" (1,448 mm)
Min. Arm Reach:
42" (1,067 mm)
Time to Full Rise:
55 seconds
Pump:
Air/Hydraulic
Air Pressure:
125 PSI (10-25 CFM)
Max. Operating Hydraulic Pressure:
2,490 PSI
Power Requirement:
None
Shipping Weight:
380 lbs. (172 kg)
Shipping Dimensions:
41.25" x 25" x 13" (1,048 mm x 635 mm x 330 mm)

* Dimensions listed are taken from the upper surface of the suitable four-post lift runway.

Included commercial-grade air-hydraulic pump requires 125 psi and 10 – 20 CFM.

Note: Not all BendPak lift models meet the standards as prescribed by ANSI/ALI ALCTV-2017 or ANSI/UL 201. Consult www.autolift.org for a complete list or contact BendPak via contact@bendpak.com.
