BendPak Rolling Bridge Jacks

RJ45LP

SKU# 5175579

2,041-kg. Capacity / Jacking Beam / Easy-Roll Wheels / Low-Profile


BendPak RJ45LP Jacking Beam is designed to hold up to 2,041-kg. and features a low-profile design with easy-to-roll wheels. Use this 4-post Jacking Beam with your BendPak HD-9 series four-post car lift for increased versatility and productivity.

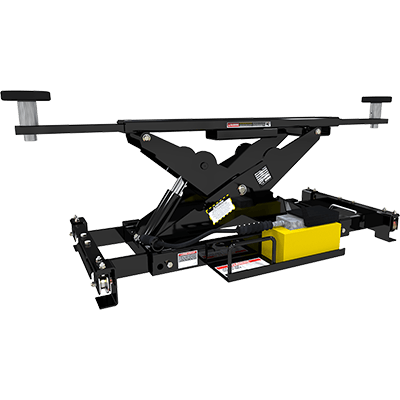

RJ45LP Rolling Bridge Jack
User Manual Download
Sales Sheet Download
Warranty Download

Low-Profile Design with 2,041-kgs. Full Wheel Service Capability

The RJ45LP rolling bridge jack is ideal for any shop with the HD-7 series or HD-9 series four-post lift model, arguably the most popular and versatile four-post car lifts on the market. Featuring an impressive low-profile design, the RJ45LP lift pads sit just 108 mm from the runway surface and is equipped with easy-to-roll wheels for effortless gliding down the runway track. For those with an HD-7 or HD-9 four-post lift that are in need of wheel service capability, the RJ45LP offers extreme versatility and convenience, in a low-profile package.

What is the difference between the RJ45LP and RJ45W?

The RJ45LP and RJ45W rolling bridge jacks are essentially the same except for two specifications: First, the RJ45LP minimum drive-over height is 108 mm and the RJ45W minimum drive-over height is 114 mm. Second, the RJ45LP maximum arm reach is 1,534 mm wide and the RJ45W maximum arm reach is 1,447 mm wide. Take a look at the RJ45W Bridge Jack.

Low-Profile Bridge Jack

The RJ45LP bridge jack has a minimum drive-over height of just 108 mm when fully lowered. This provides ample clearance for low-stance sports cars and other modified vehicles.

Easy-Roll Wheels Come Standard

Completely redesigned, the RJ45LP rolling bridge comes standard with easy-roll wheels that fit onto the runway channels on standard four-post lift models ​3,175-kgs lifting capacity or greater and provide effortless gliding along the runways for easy positioning and adjustability. BendPak rolling bridge jack rollers are made of hardened stainless-steel and zinc plated for maximum durability.

Rubber contact pads

BendPak protects your vehicles by providing a non-marring rubber contact pad on the popular ​RJ45LP rolling bridge jack. The durable design will hold up for many years of heavy use. We highly recommended purchasing the optional frame cradle set for use on trucks and SUVs.

Stackable adapters

Once your rubber contact pads are positioned under the manufacturer-recommended lift points, you may find that high-clearance vehicles are hard to reach. The stackable adapter set comes in handy to bridge that gap and make lifting easier.

High-pressure hydraulic power unit

Attached to the rolling bridge jack is a hydraulic power unit that also features an airline with 125 psi and 10 – 20 CFM. This independent power unit is ergonomically controlled with a foot pedal attached directly to the jack.

Three lock levels

With three lock positions to choose from, it’s easy to find the perfect height to perform wheel and brake service. For additional height, raise the car lift to its max height, add the stackable adapters and raise the rolling bridge jack as high as it will go. Now you have more access to the undercarriage than ever before.

Features

  • 2,041-kg. lifting capacity
  • Easy-Roll Wheels
  • Low-profile minimum drive-over height, wider reach lifting points
  • Rubber contact pads
  • Stackable adapters
  • High-pressure hydraulic power unit
  • Optional air-line kit
RJ45LP specs diagram

Capacity

Lifting Capacity*

Rise

A - Max. Height + Pad Only:
B - Max. Height + Pad + Adapter:
C - Min. Height + Pad Only:
D - Min. Height + Pad + Adapter:
Time to Full Rise:

Reach

F - Support Arm Width:
-
G - Max. Arm Reach:
H - Min. Arm Reach:

Power Unit

Motor:
Noise:

Shipping

Weight:
Dimensions:

RJ45LP Specifications

Lifting Capacity
4,500 lbs. (2,041 kg)
Suitable Lift Model(s)
HD-7 Series, HD-9 Series, GP-9 series

Min. Drive-Over Height*

Pad Only:
4.25" (108 mm)
Pad + 2.75" Adapter:
7" (178 mm)
Pad + 5.5" Adapter:
9.75" (248 mm)

Max. Lifting Height*

Pad Only:
15.25" (387 mm)
Pad + 2.75" Adapter:
18" (457 mm)
Pad + 5.5" Adapter:
21" (533 mm)

Reach

Support Base Width:
35.5" (902 mm) - 46.5" (1,181 mm)
Max. Arm Reach:
61" (1,549 mm)
Min. Arm Reach:
42" (1,067 mm)
Time to Full Rise:
55 seconds
Pump:
Air/Hydraulic
Air Pressure:
125 PSI (10-25 CFM)
Max. Operating Hydraulic Pressure:
2,490 PSI
Power Requirement:
None
Shipping Weight:
306 lbs. (139 kg)
Shipping Dimensions:
41.25" x 25" x 13" (1,048 mm x 635 mm x 330 mm)

* Dimensions listed are taken from the upper surface of the suitable four-post lift runway.

Included commercial-grade air-hydraulic pump requires 125 psi and 10 – 20 CFM.

Note: Not all BendPak lift models meet the standards as prescribed by ANSI/ALI ALCTV-2017 or ANSI/UL 201. Consult www.autolift.org for a complete list or contact BendPak via contact@bendpak.com.
