Four-Post Lifts by BendPak

HD-9ST

SKU# 5175860

4,082-kg. Capacity / Four-Post Lift / Narrow Width


This narrow-width, 4,082-kg. HD-9ST four-post lift offers the same power and safety features of the HD-9, but in a smaller package.

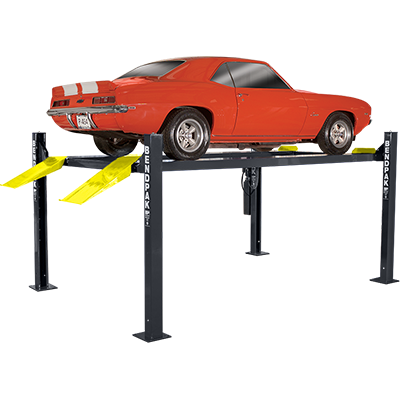

HD-9ST Four-Post Lift with Narrow Width by BendPak
User Manual Download
Sales Sheet Download
Warranty Download

A Slim, Safe and Certified ​Lift

Some garages are just a bit too cozy for a standard-width four-post lift. The trick is to find a smaller-footprint lift that won’t sacrifice functionality. The HD-9ST is perfect for small garages and spaces that are already filled to near-capacity. Its narrow width is designed for spaces and service bays that need to fit more lift in less space.

A slim lift is a smart choice for owners more compact vehicles. Because the HD-9ST features an open center, it doubles as both narrow parking lift and maintenance lift. This makes it the ideal four-post lift for wrenchers with a limited amount of space. In addition to the narrow design, the columns are only 2,235 mm high, so it’s low-profile too. The runways raise to a max height of 1,905 mm, so the HD-9ST fits easily in low ceilings yet doesn’t sacrifice lifting height. Ample clearance underneath ensures that full-grown men and women over 182 cm tall will have no problem performing oil changes, comfortably adjusting transmission jacks and removing and replacing exhaust systems. Other lifts may sacrifice lifting height as they reduce their overall widths to accommodate smaller vehicles, but not this one. This is one four-post lift that’s every bit as comfortable to use as its standard-width and super-wide sister models in the HD-9 series.

The HD-9ST may be smaller, but it’s not weaker than other designs, nor is it a hobby lift. In fact, this car lift is fully ALI certified. It’s used every day in professional shops around the world, and many motorists prefer it to the standard-length HD-9 simply because it leaves more room in their garage for tools and equipment.

Features

  • 4,082-kg. maximum lifting capacity
  • CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN-1493
  • Two different ramp lengths to choose from
  • Narrow width for space efficiency
  • Freestanding design
  • Perfect for parking, storage and service
  • Runways accommodate narrow and standard vehicles
  • Runways include rail-kit for optional accessories
  • Electric / hydraulic power system
  • Single hydraulic cylinder mounted underneath runway
  • Fully enclosed lifting cables, safety locks and sheaves
  • Internal anti-sway slider blocks in each column
  • Oversized self-lubricating cable rollers
  • Features heavy-duty 9.5 mm aircraft cable
  • Rugged 32 mm roller axles
  • Multi-position safety locks in each column
  • Adjustable lock ladders
  • Push-button pneumatic safety release
  • Independent backup slack-cable safety latches
  • Customizable power unit location
  • Removable approach ramps for additional drive-under clearance
  • Longer approach ramps for low-ground clearance vehicles
  • Optional drive-thru ramps available
  • Optional drip trays available
  • Optional solid deck available to increase storage capacity
  • Optional 2041-kg. air / hydraulic rolling jacks available (Model RJ-45)
  • ETL Approved

HD-9ST Specifications

HD-9ST specs diagram

Capacity

Lifting Capacity*
9000
*Max Capacity / Front Axle
4500
*Max Capacity / Rear Axle
4500

Rise

A - Min. Runway Height:
4.5
B - Max. Rise:
70
C - Max. Lifting Height:
74.5
Time to Full Rise:
45 seconds

Outside Dimensions

D - Overall Width:
100.25
E - Outside Length:
174
F - Overall Length:
200
G - Height of Columns:
88

Inside Dimensions

H - Width Between Columns:
89.75
I - Drive-Thru Clearance:
76.5

Runways

J - Runway Width:
19
K - Length of Runways:
164
L - Width Between Runways:
or 37.5
M - Runway Centerline:
or 56.5
N - Outside Edge of Runways:
or 75.5

Minimum Wheelbase

Rated Capacity:
115
75% Capacity:
100
50% Capacity:
85
25% Capacity:
70

Locking

Locking Positions:
12
Lock Spacing:
Every 4" (102 mm)

Power Unit

Motor:
220 VAC / 60 Hz / 1Ph
Noise:
45 dB

Shipping

Weight:
1,872 lbs. (851 kg)
Dimensions:
180" x 22" x 40" (4,572 mm x 559 mm x 1,016 mm)

Note: An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.

Note: Not all BendPak lift models meet the standards as prescribed by ANSI/ALI ALCTV-2017 or ANSI/UL 201. Consult www.autolift.org for a complete list or contact BendPak via contact@bendpak.com.
